• Rigid resin bonded fibers – Strong structure, no media migration.

  Gradient density design – Filters both large and fine particles.

  High dirt-holding capacity – Longer service life, fewer

  change-outs.

  Chemical resistant – Works with acids, alkalis, and solvents.

  Heat resistant – Performs well in high-temperature

  processes.

  One-piece coreless design – No bypass, consistent

  filtration.

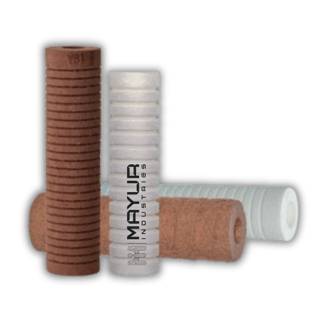

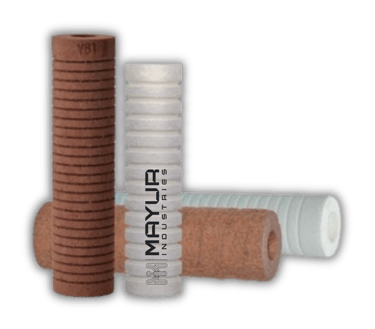

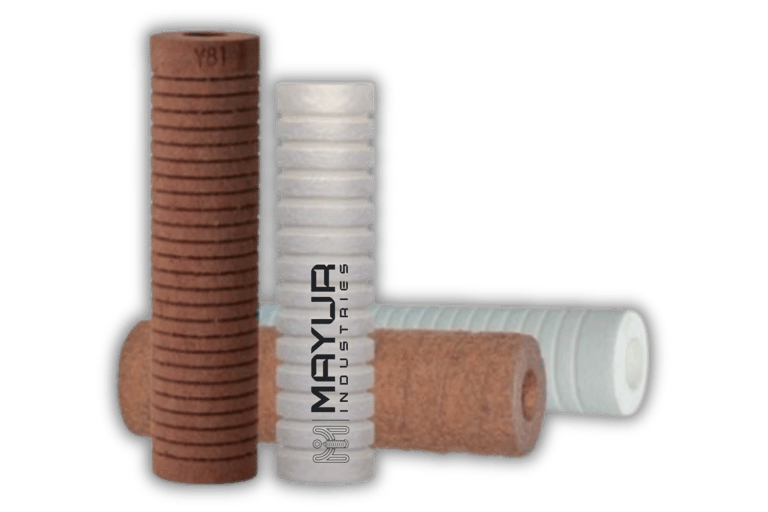

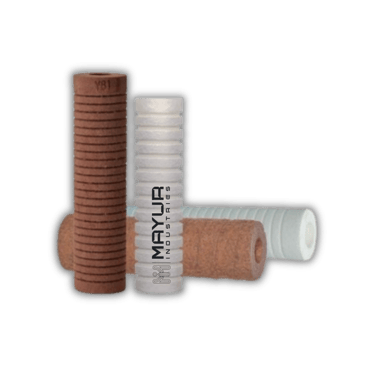

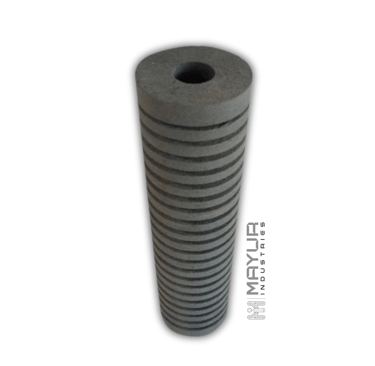

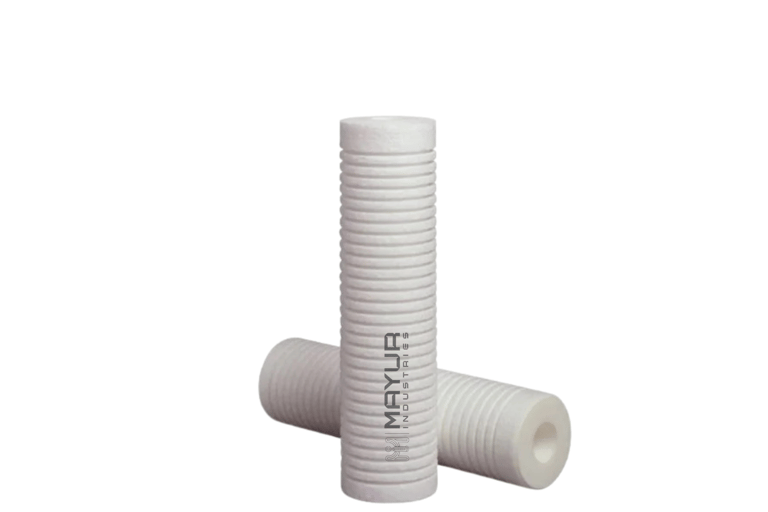

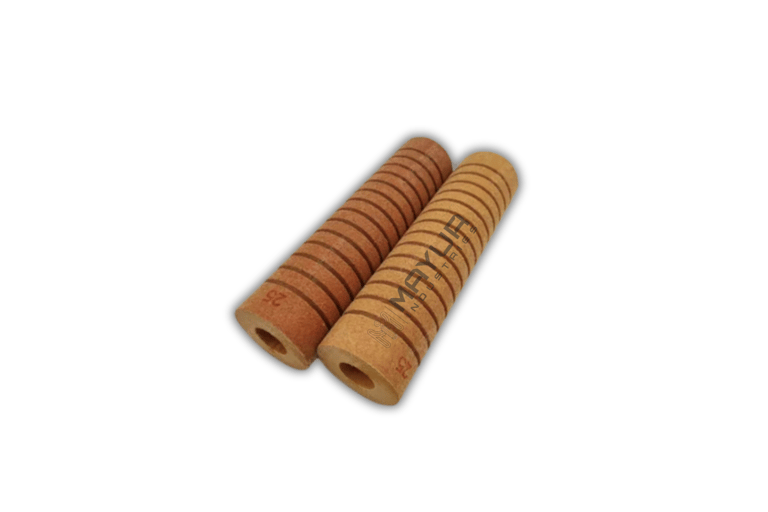

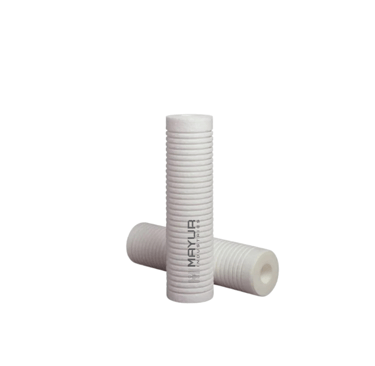

Resin Bonded Filter Cartridge is a depth-type filter made by bonding fibers with thermosetting resin to form a rigid, porous structure. It offers excellent strength, high dirt-holding capacity, and consistent filtration performance under high pressure and temperature conditions. Designed for removing gels, deformable particles, and viscous contaminants, it is widely used in applications such as paints, coatings, adhesives, chemicals, and oil refining.

Are you interested in our Resin Bonded Filter Cartridge and would like to inquire about:

Available sizes and micron ratings

Pricing and bulk order discounts

Lead times and delivery options

Product Description

Backed by a team of adroit professionals, we are engrossed in supplying the best in line Resin Bonded Filter Cartridge that is unmatched in terms of design and performance. This filter cartridge is made out of the finest grade synthetic plastic that is resilient and long-lasting. Therefore, it does not degrade in quality or become inferior in the long run. It is easy to install and maintain. Resin Bonded Filter Cartridge does not degrade in quality or become inferior in the long run. Our customers can approach us to purchase the filter cartridge at a budget-friendly price.

Features & Benefits

Micron Ratings

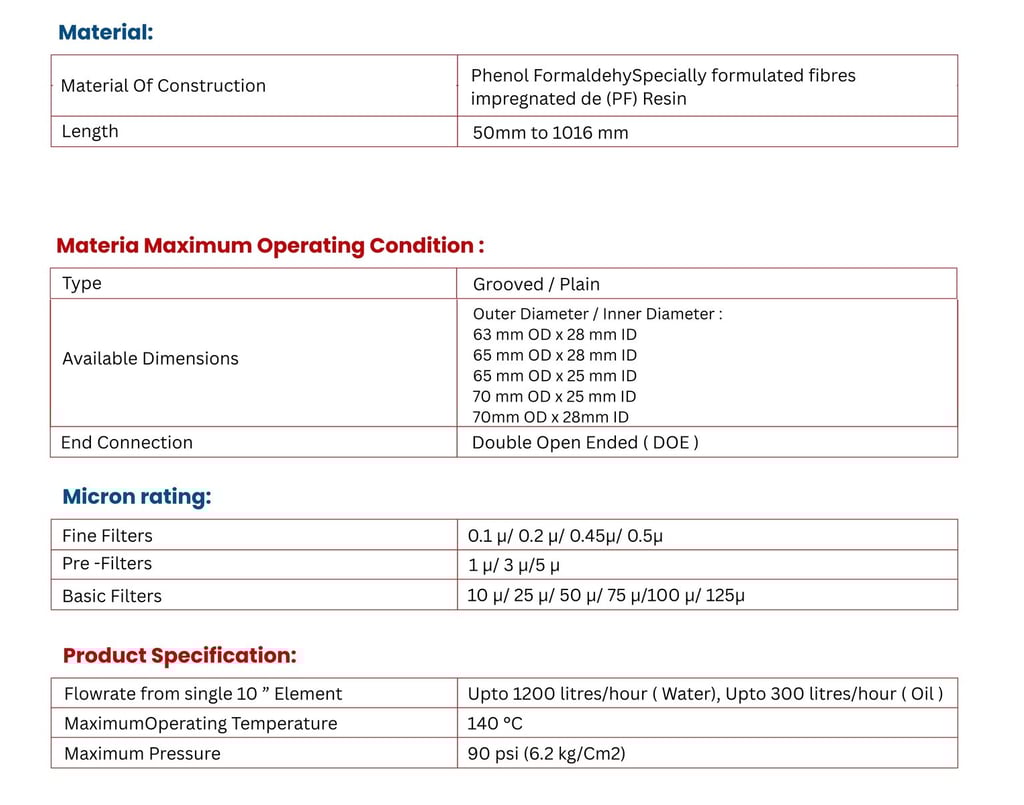

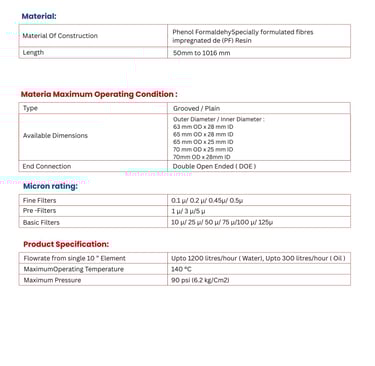

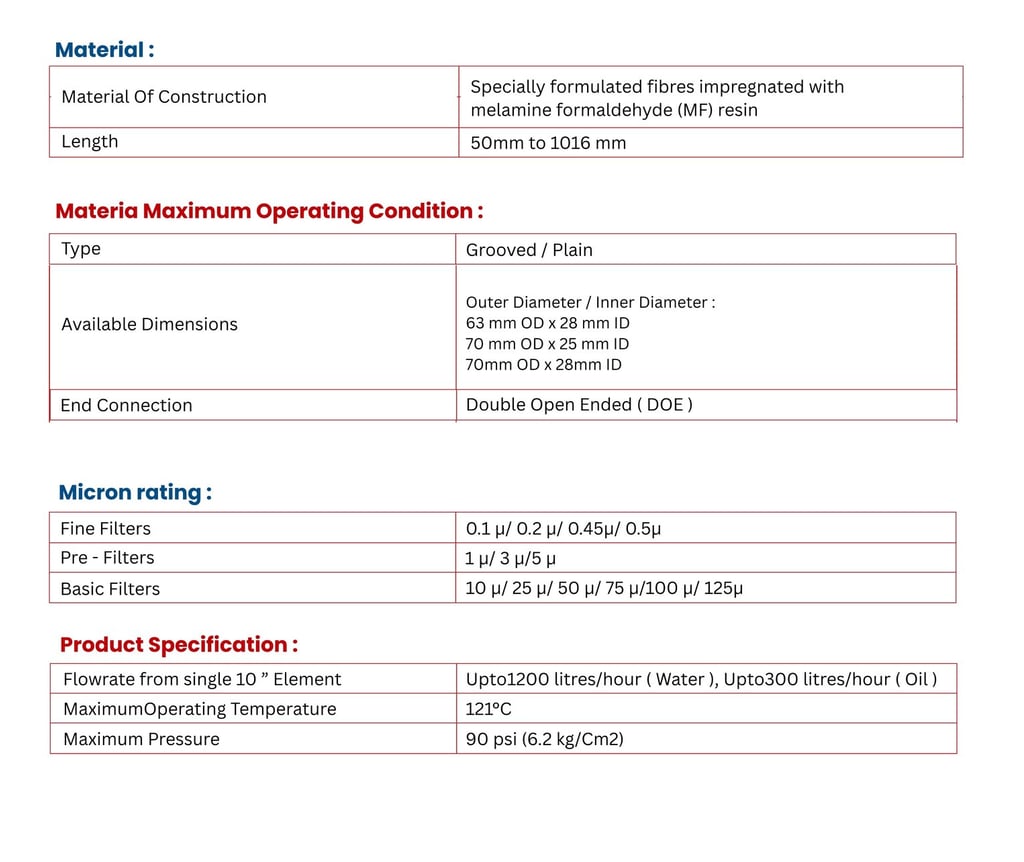

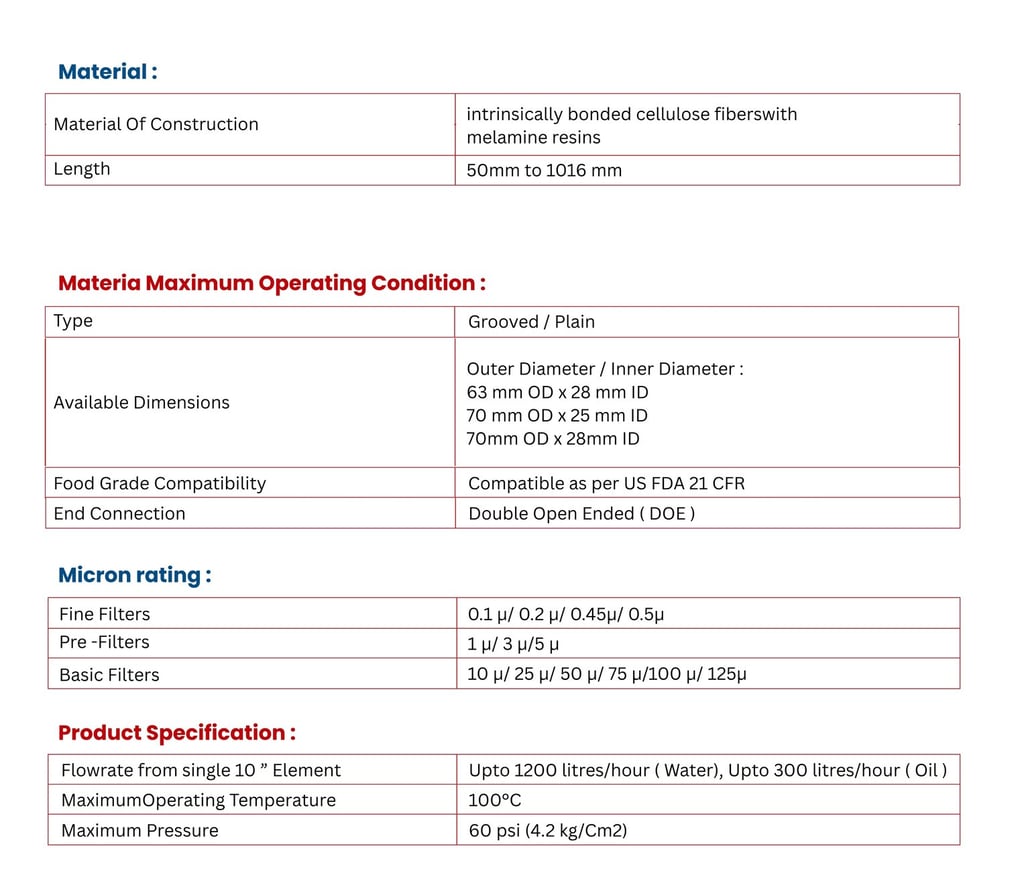

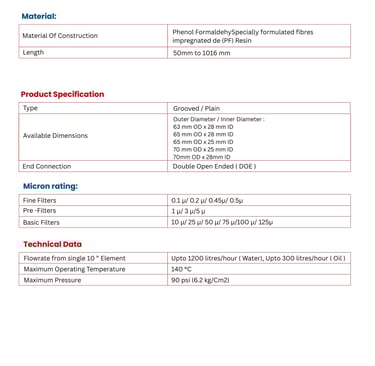

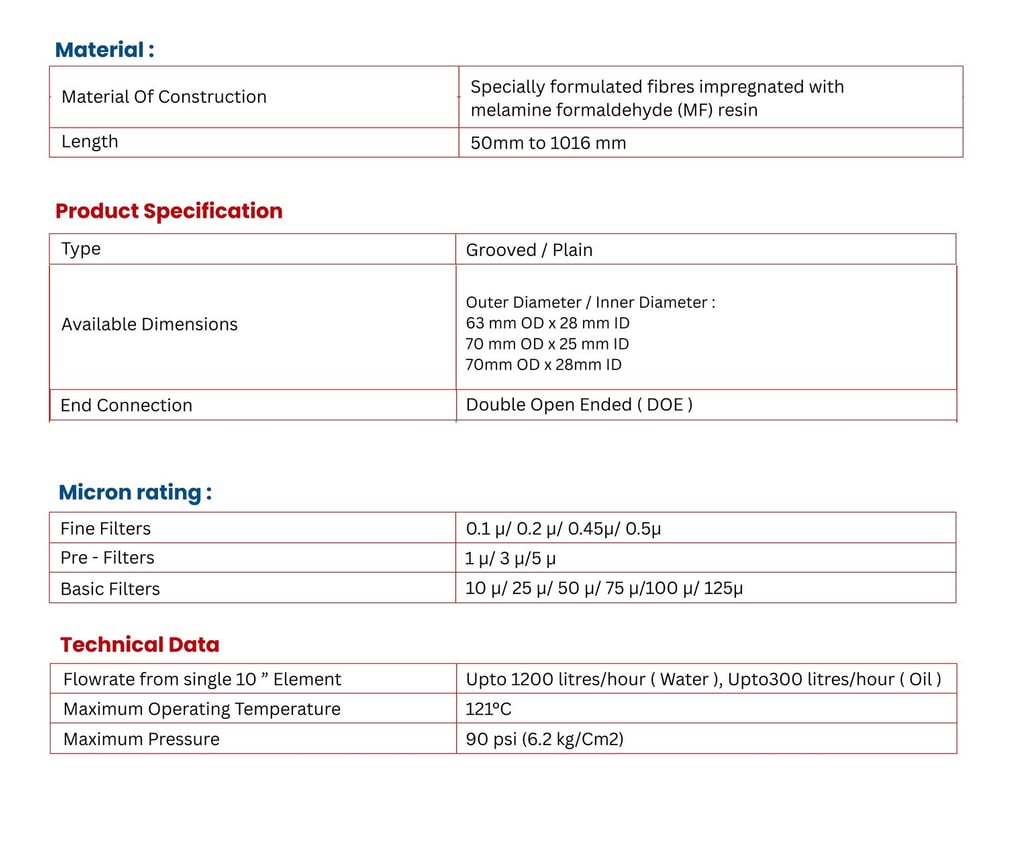

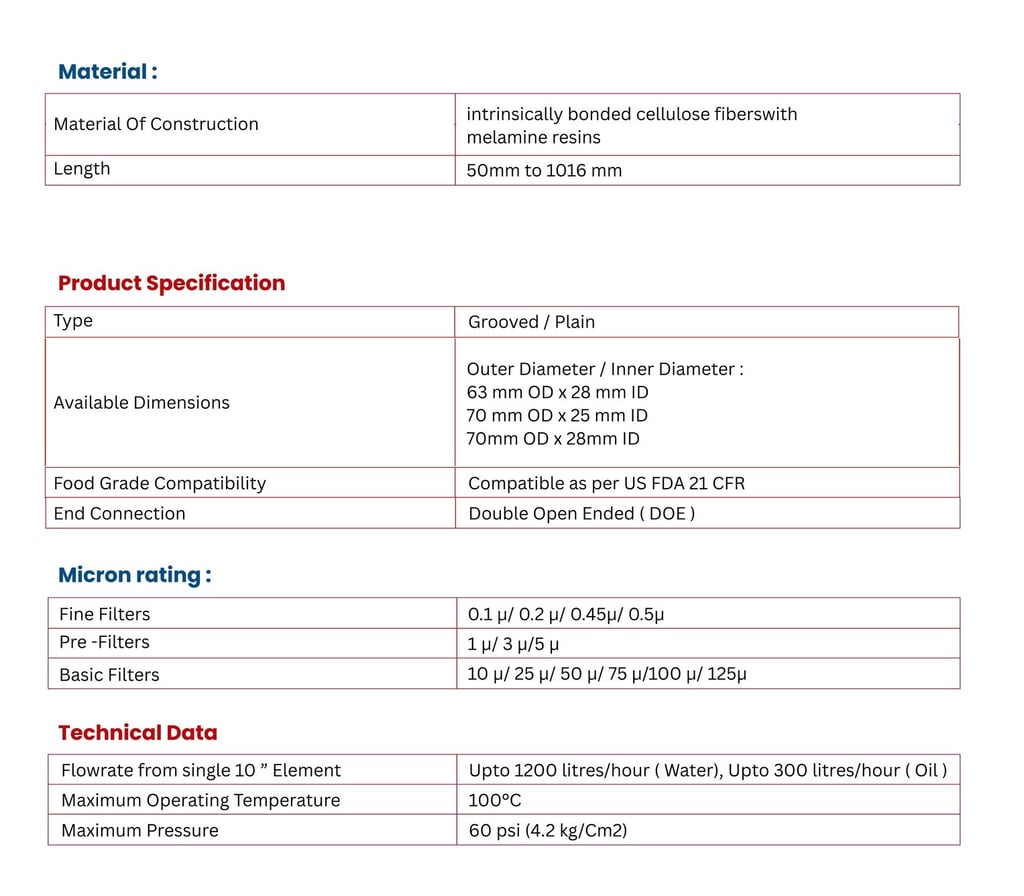

Product Specifications

Resin Bonded Filter Cartridge

1 µm to 125 µm

Lengths

Material

Max Temperature

Configuration

Core

Applications

5", 10", 20", 30", 40"

Resin-bonded cellulose or synthetic fibers

Coreless (standard), optional metal/polymer core

Up to 120°C

DOE, 222/226 with flat or fin ends

Inks, paints, adhesives, resins, chemicals, viscous fluids
